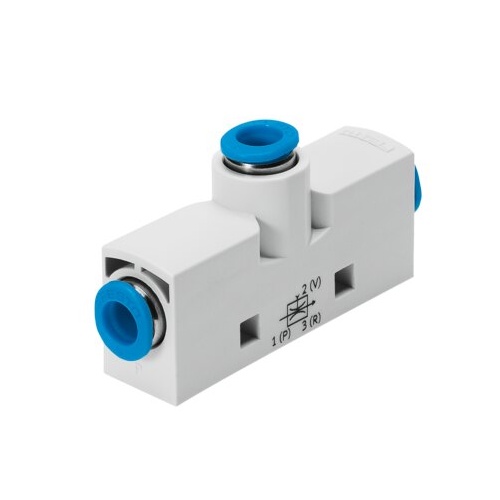

Vacuum generatorVN-10-L-T3-PQ2-VQ2-RQ2

193563

GTIN: 4052568080198

Nominal size, Laval nozzle
0.95 mm
Max. suction flow rate against atmosphere
62.7 l/min



Technical Data Vacuum generator VN-10-L-T3-PQ2-VQ2-RQ2

  • Nominal size, Laval nozzle0.95 mm
  • Grid dimension14 mm
  • Mounting positionAny
  • Ejector characteristicHigh suction rate Standard
  • DesignT-shape
  • Symbol00991490
  • Operating pressure for max. suction flow rate4 bar
  • Operating pressure1 bar ... 8 bar
  • Nominal operating pressure6 bar
  • Max. suction flow rate against atmosphere62.7 l/min
  • Air supply time at nominal operating pressure0.46 s
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature0 °C ... 60 °C
  • Ambient temperature0 °C ... 60 °C
  • Max. tightening torque0.5 Nm
  • Product weight22 g
  • Type of mountingWith through-hole With accessories
  • Pneumatic connection, port 1QS-6
  • Pneumatic connection, port 3QS-6
  • Vacuum connectionQS-6
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material receiver nozzlePOM
  • Material housingReinforced POM
  • Material transmitter nozzleWrought aluminium alloy
  • Material fittingBrass nickel-plated
