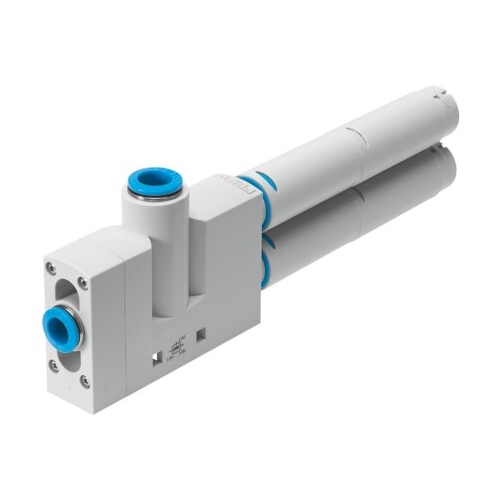

Vacuum generatorVN-20-L-T6-PQ4-VQ5-RO2

193578

GTIN: 4052568153366

Nominal size, Laval nozzle
2 mm
Max. suction flow rate against atmosphere
188 l/min



Technical Data Vacuum generator VN-20-L-T6-PQ4-VQ5-RO2

  • Nominal size, Laval nozzle2 mm
  • Grid dimension24 mm
  • Silencer designOpen
  • Mounting positionAny
  • Ejector characteristicHigh suction rate Standard
  • Integrated functionOpen silencer
  • DesignT-shape
  • Symbol00991489
  • Operating pressure for max. suction flow rate3 bar
  • Operating pressure1 bar ... 8 bar
  • Nominal operating pressure6 bar
  • Max. suction flow rate against atmosphere188 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Media temperature0 °C ... 60 °C
  • Sound pressure level at nominal operating pressure60 dB(A)
  • Ambient temperature0 °C ... 60 °C
  • Max. tightening torque0.8 Nm
  • Product weight182 g
  • Type of mountingWith through-hole With accessories
  • Pneumatic connection, port 1QS-10
  • Pneumatic connection, port 3Open silencer
  • Vacuum connectionQS-12
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material receiver nozzlePOM
  • Material housingReinforced POM
  • Material silencerDie-cast aluminium POM Polyurethane foam
  • Material transmitter nozzleWrought aluminium alloy
  • Material fittingBrass nickel-plated



SKU 193578
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
