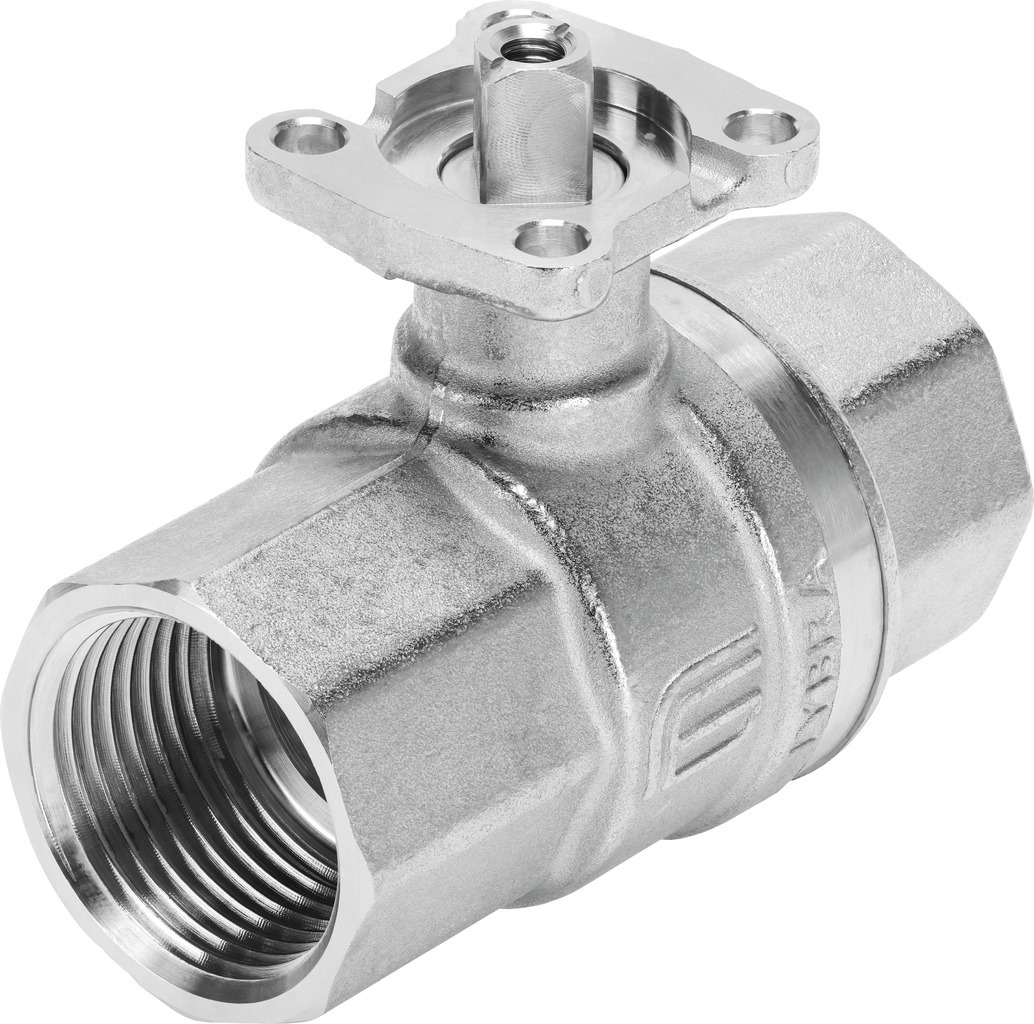

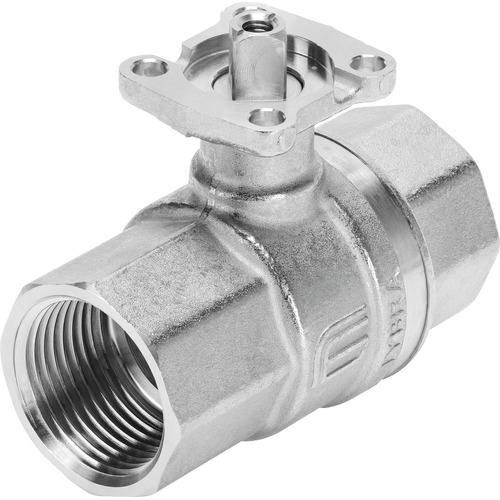

VZBM-1/2-RP-25-D-2-F03-B2B3 Ball valve

VZBM-1/2-RP-25-D-2-F03-B2B3

$46.38
RRP $51.90
SAVE $5.52 (11%)


Ball valve

VZBM-1/2-RP-25-D-2-F03-B2B3

4405648

GTIN: 4052568274498

Downloads

BALL-VALVES_EN.PDF

Technical data

Links

Spare parts



Design 2-way ball valve

Flow rate Kv 15 m³/h

Connection Process valve Rp1/2

Type of actuation Mechanical

Technical Data

  • Design2-way ball valve
  • Type of actuationMechanical
  • Sealing principleSoft
  • Mounting positionoptional
  • Type of mountingIn-line installation
  • Connection Process valveRp1/2
  • Switching position indicatorSlot direction = flow direction
  • Flange hole patternF03
  • Inside diameter15 mm
  • Nominal size DN15
  • Valve function2/2
  • Flow directionReversible
  • Nominal pressure PN25
  • Breakaway torque at differential pressure, nominal pressure, process valve PN4.3 Nm
  • Based on standardEN 10226-1 ISO 5211
  • Symbol00991458
  • MediumCompressed air to ISO 8573-1:2010 [-:-:-] Inert gases Water – no water vapour Neutral fluids
  • Media temperature-15 °C ... 90 °C
  • Flow rate Kv15 m³/h
  • Note on materialsRoHS-compliant
  • LABS (PWIS) conformityVDMA24364 zone III
  • Material housingBrass Nickel-plated
  • Material number housingCW617N
  • Material sealsFPM HNBR PTFE
  • Material ballBrass Chrome-plated
  • Material number ballCW617N
  • Material shaftBrass
  • Material number shaftCW617N
  • Product weight206 g
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
  • Corrosion resistance class CRC1 - Low corrosion stress

Ball valve

(4405648)

SKU 4405648
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
