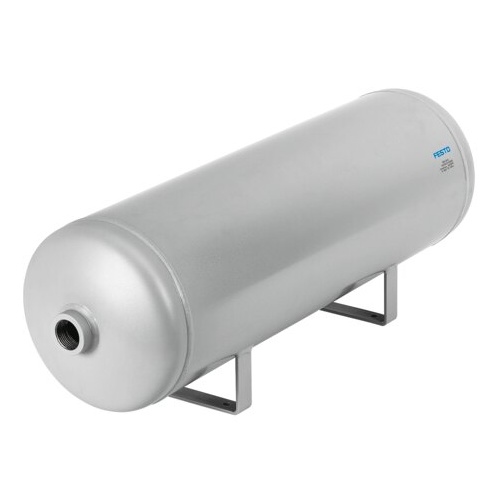

Air reservoirVZS-20-B

192161

GTIN: 4052568150822

Volume
20 l
Material air reservoir
Powder-coated steel
Conforms to standard
EN 286-1
Condensate drain connection
G3/8



Technical Data Air reservoir VZS-20-B

  • Volume20 l
  • Mounting positionCondensate drain downwards
  • Conforms to standardEN 286-1
  • Symbol00991474
  • Operating pressure-0.095 MPa ... 1.6 MPa
  • Operating pressure-0.95 bar ... 16 bar
  • Operating pressure-13.775 psi ... 232 psi
  • CE mark (see declaration of conformity)In accordance with EU Directive on Simple Pressure Vessels
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-] Nitrogen
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 100 °C
  • Ambient temperature-10 °C ... 100 °C
  • Max. tightening torque for connecting thread130 Nm
  • Max. tightening torque for condensate drain27 Nm
  • Product weight9000 g
  • Type of mountingWith through-hole
  • Condensate drain connectionG3/8
  • Pneumatic connectionG1
  • Material air reservoirPowder-coated steel



SKU 192161
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
