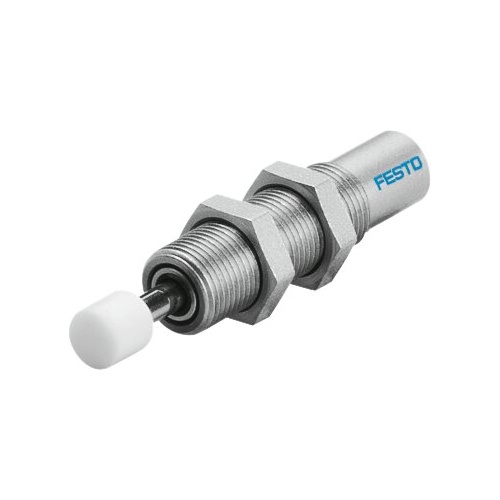

Shock absorberYSR-10-10-C

191199

GTIN: 4052568150518

Stroke
10 mm
Max. energy consumption per stroke
6 J
Cushioning
Self-adjusting



Technical Data Shock absorber YSR-10-10-C

  • Size10
  • Stroke10 mm
  • CushioningSelf-adjusting
  • Mounting positionAny
  • Position detectionNone

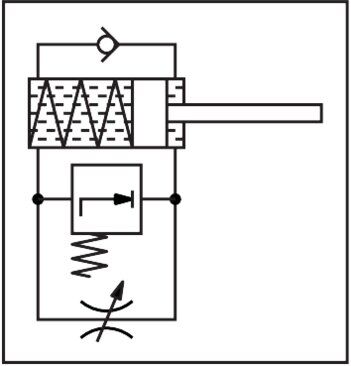

  • Symbol00991497
  • Max. impact speed3 m/s
  • Reset time at room temperature0.2 s
  • Reset time at min. ambient temperature1 s
  • Mode of operationPushing Single-acting
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Cushioning length10 mm
  • Max. stop force700 N
  • Max. energy consumption per stroke6 J
  • Max. energy consumption per hour26000 J
  • Max. residual energy0.03 J
  • Reset force3.5 N
  • Min. insertion force25 N
  • Product weight51 g
  • Load range25 kg
  • Type of mountingVia lock nut
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material housingGalvanised steel
  • Material piston rodHigh-alloy steel



SKU 191199
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
