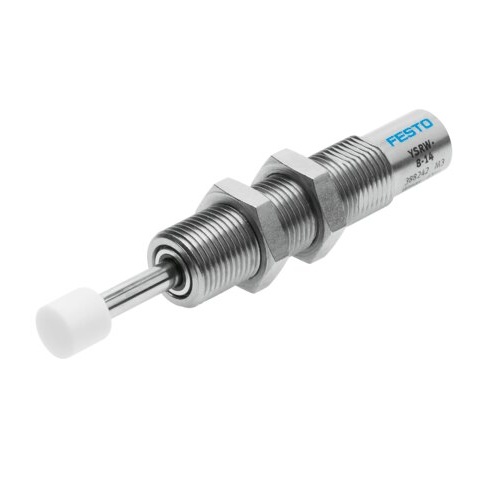

Shock absorberYSRW-8-14

191194

GTIN: 4052568014872

Stroke
14 mm
Max. energy consumption per stroke
4 J
Cushioning
Self-adjusting - Soft characteristic curve



Technical Data Shock absorber YSRW-8-14

  • Size8
  • Stroke14 mm
  • CushioningSelf-adjusting Soft characteristic curve
  • Mounting positionAny
  • Position detectionNone
  • Symbol00991495
  • Max. impact speed3 m/s
  • Reset time at room temperature0.2 s
  • Reset time at min. ambient temperature1 s
  • Mode of operationPushing Single-acting
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Cushioning length14 mm
  • Max. stop force500 N
  • Max. energy consumption per stroke4 J
  • Max. energy consumption per hour21000 J
  • Max. residual energy0.02 J
  • Reset force2.5 N
  • Min. insertion force18 N
  • Product weight34 g
  • Load range10 kg
  • Type of mountingVia lock nut
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material housingHigh-alloy steel
  • Material piston rodHigh-alloy steel



SKU 191194
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
