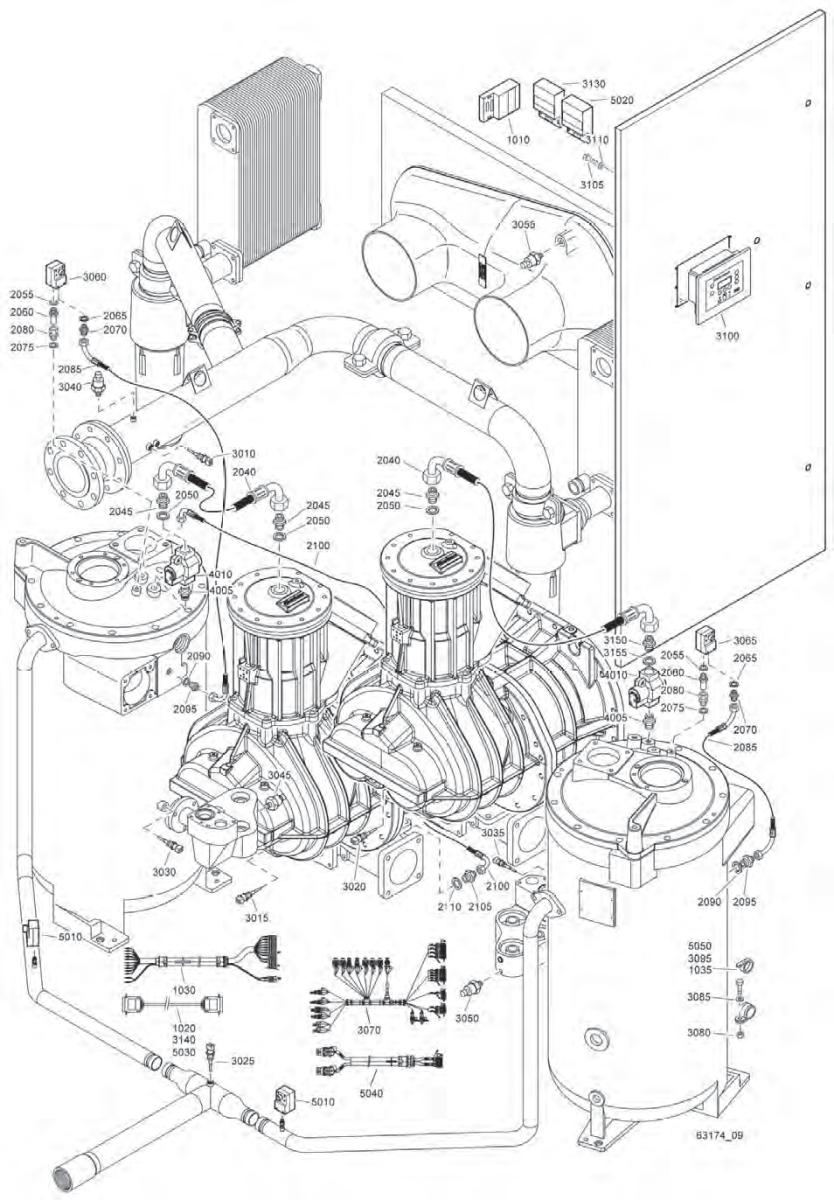

1623 1438 00 Wire Harness Atlas Copco Large GA



Item 3070 - All wire harness for ALL sensors. Individial cables not supplied from Atlas Copco.









































Ref. Part number Qty Name Remarks
1010 1 Regulator
1900 0710 82 PT1000 and Anti
CONDensation heaters
1900 0710 62 PT100 and Anti
CONDensation heaters
1020 1622 0661 02 1 Cable
1030 1 Wire harness
1621 2355 00 SPM monitoring 1)
1035 0348 0102 06 10 Cable tie
2040 0574 9874 05 2 Hose assembly
2045 2250 4983 00 2 Nipple
2050 0661 1000 30 4 Seal washer
2055 0661 1000 24 2 Seal washer
2060 1615 3624 00 2 Nozzle
2065 0661 1000 24 2 Seal washer
2070 1079 5840 01 2 Nipple
2075 0661 1000 25 2 Seal washer
2080 0580 0400 03 2 Str.coupling
2085 0575 0361 18 2 Hose assembly
2090 0661 1000 24 2 Seal washer
2095 1079 5840 01 2 Nipple
2100 0574 9841 23 2 Hose assembly
2105 1619 5205 00 2 Nipple
2110 0661 1000 25 2 Seal washer
3010 1089 0574 40 1 Temp. sensor
3015 1089 0574 40 1 Temp. sensor
3020 1089 0574 40 1 Temp. sensor
3025 1089 0574 40 1 Temp. sensor
3030 1089 0574 40 1 Temp. sensor
3035 1089 0574 40 1 Temp. sensor
3040 1089 9625 33 1 Press.transducer
3045 1089 9625 33 1 Press.transducer
3050 1089 9625 33 1 Press.transducer
3055 1089 9625 36 1 Press.transducer
3060 1089 9625 01 1 Dp transducer
3065 1089 9625 01 1 Dp transducer

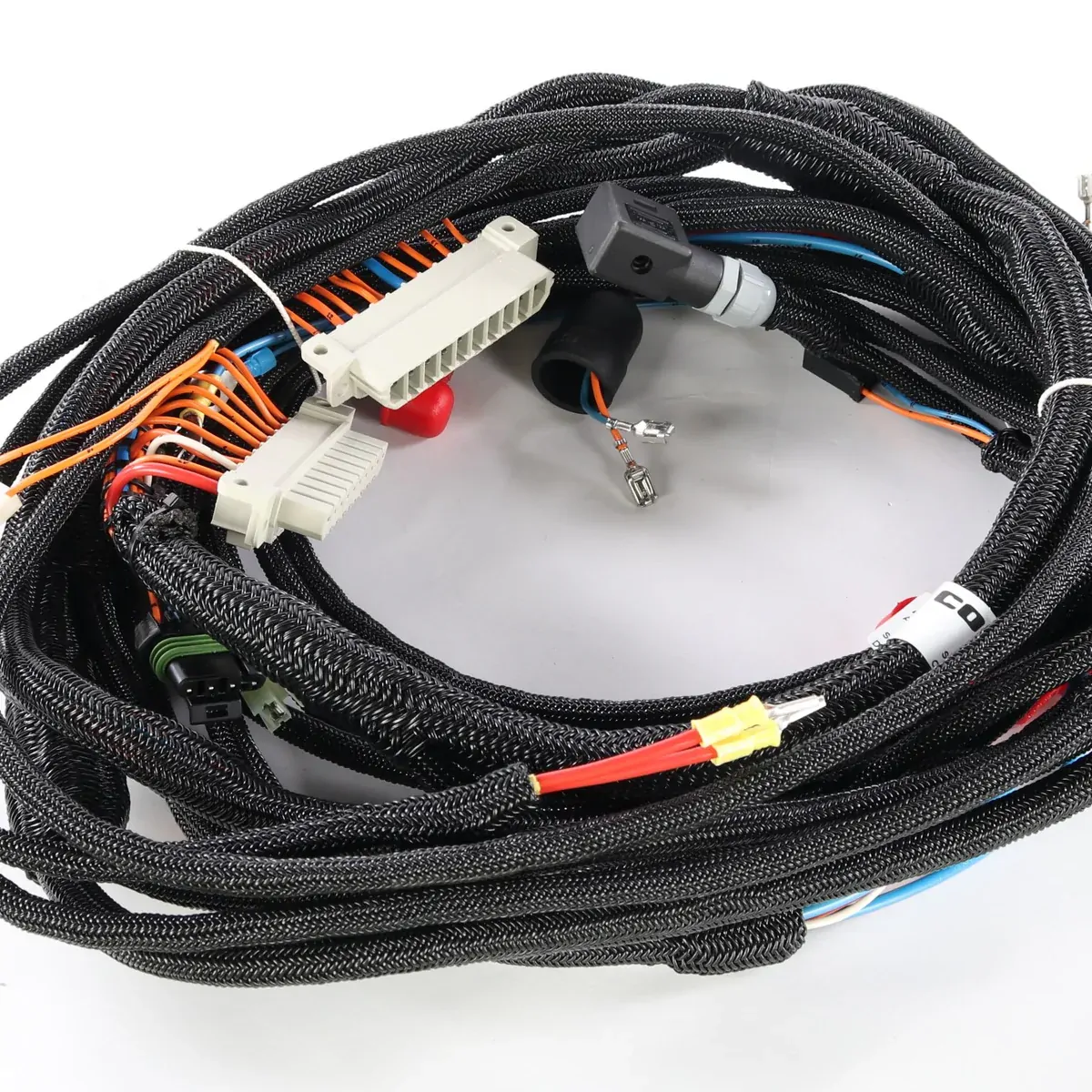

3070 1623 1438 00 1 Wire harness
Ref. Part number Qty Name Remarks
3080 0266 2110 00 2 Hexagon nut
3085 0301 2335 00 2 Washer
3095 0348 0102 08 14 Cable tie
3100 1 Regulator
1900 0710 31 European display
1900 0712 91 Asian display
3105 0160 6039 00 4 Screw
3110 0301 2315 00 4 Washer
3130 1900 0710 41 1 Regulator
3140 1622 0661 04 1 Cable
3150 2250 4983 00 2 Nipple
3155 0661 1000 30 2 Seal washer
4005 2 Hexagon nipple
0603 4106 03 10 bar(e)
0603 4106 03 10.4 bar(e)
0603 4106 03 13 bar(e)
0603 4106 03 13.8 bar(e)
4010 2 Valve
1621 4241 00 10 bar(e)
1621 4241 00 10.4 bar(e)
1621 4241 00 13 bar(e)
1621 4241 00 13.8 bar(e)
5010 2 Dp transducer
1089 9625 01 Tubecooler
5020 1 Regulator
1900 0710 41 Tubecooler
5030 1 Cable
1622 0661 02 Tubecooler
5040 1 Wire harness
1621 2698 00 Tubecooler
5050 6 Cable tie
0348 0102 08 Tubecooler
